Installing the USB50 On Hold Player for PBX or KEY Phone Systems

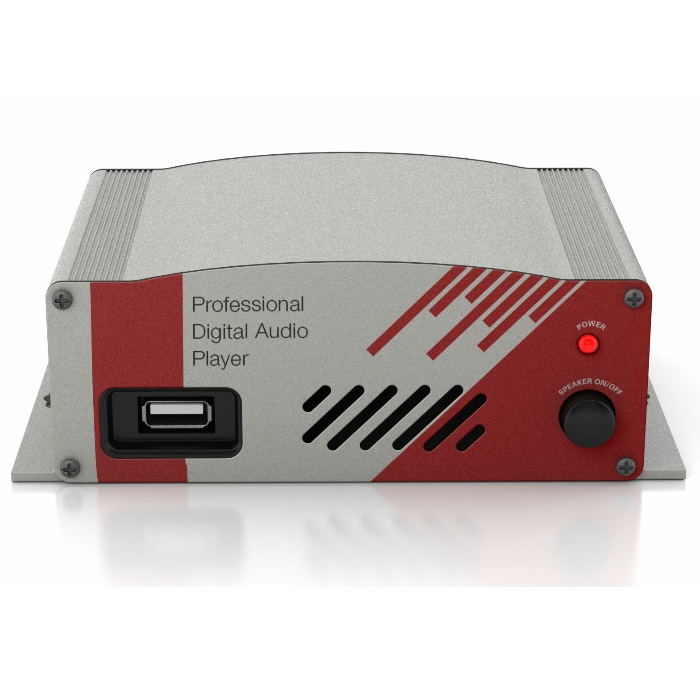

go-6000front

Follow these 4 simple installation steps and you will have your USB50 connected to your PBX or KEY phone system in no time.


Step 1:

Mounting the unit: Wall mounting, mount the PD-USB50 to a clean, dry surface using the screws supplied with your player. Shelf mounting, apply the non-marring feet to the bottom of the player.

Step 2:

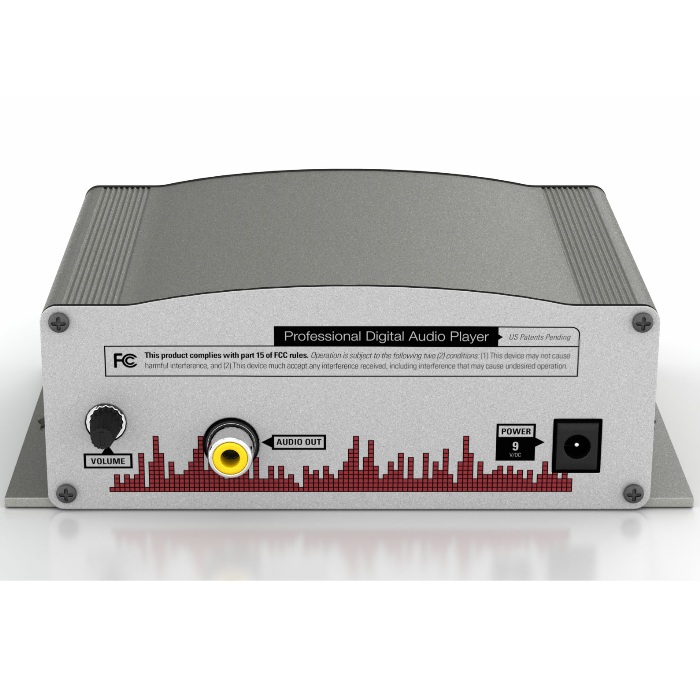

Using the supplied audio cable, connect the audio output on the digital player to the music-on-hold jack located on the key service unit.

Connect the AC wall transformer to the power jack on the digital player and plug the transformer into the wall outlet.

go-6000front

Step 3:

Insert MOH drive into the front of the PD-USB50

Step 4:

The audio will start playing within 10 seconds. The audio may be previewed by turning the speaker on. Always turn the speaker off for normal operation.

Step 5:

Use the volume control on the PD-USB50 to adjust the volume to the desired level.



Loading a new message:

Step 1:

Remove the MOH drive from the PD-USB50 player and insert it into the USB port of the computer containing the messages to be transferred.

Step 2:

Wait for the computer to recognize the MOH drive as a storage device (up to 30 seconds).

Step 3:

Double-click the icon for the MOH drive to display its contents. If “MOH Drive” is not in the list of available devices, remove the drive, wait 5 seconds, and re-insert it into your computer.

Step 4:

Delete any unwanted messages on the MOH drive by dragging them to the trash and choosing “empty trash”.

Step 5:

Drag and drop (or copy and paste) any new messages to the main directory of the MOH drive.

Step 6:

Eject the MOH drive from your computer and return it to the PD-USB50. After inserting the drive into the player, the new messages will start playing within 10 seconds.
